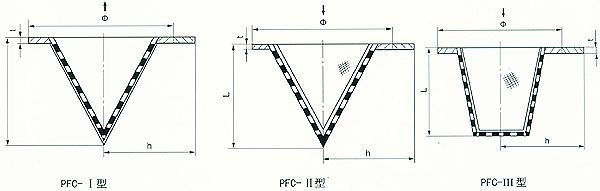

(1)正向流锥形临时过滤器(PFC-I型)(DN25—600，PN≤5.OMPa)
(2)反向流锥形临时过滤器(PFC-II型)(DN25—600，PN≤5.OMPa)
(3)平底临时过滤器(PFC-II型)(DN25～600，PN≤5．OMPa)
|
DN
|
Ф
|
L
|
h
|
t
|
|
PN0.6
|
PN1.0
|
PN1.6
|
PN2.5
|
PN4.0
|
PN2.0
|
PN5.0
|
C-I,II型
|
C-III型
|
|
25
|
62
|
70
|
70
|
70
|
70
|
64
|
71
|
26
|
46
|
90
|
2
|
|
32
|
72
|
80
|
80
|
80
|
80
|
73
|
80
|
34
|
61
|
100
|
|
40
|
84
|
90
|
90
|
90
|
90
|
82
|
92
|
41
|
66
|
120
|
|
50
|
94
|
105
|
105
|
105
|
105
|
100
|
107
|
55
|
81
|
130
|
|
65
|
114
|
125
|
125
|
125
|
125
|
120
|
127
|
77
|
91
|
140
|
|
80
|
132
|
142
|
142
|
142
|
142
|
132
|
146
|
92
|
111
|
150
|
|
100
|
152
|
162
|
162
|
162
|
166
|
170
|
178
|
113
|
141
|
160
|
|
125
|
182
|
192
|
192
|
192
|
192
|
194
|
213
|
143
|
172
|
190
|
|
150
|
206
|
218
|
218
|
218
|
224
|
220
|
248
|
172
|
202
|
210
|
|
200
|
262
|
272
|
273
|
282
|
290
|
276
|
304
|
242
|
262
|
240
|
|
250
|
316
|
326
|
329
|
340
|
352
|
336
|
357
|
302
|
322
|
270
|
3
|
|
300
|
370
|
382
|
384
|
395
|
416
|
406
|
418
|
363
|
362
|
300
|
|
350
|
420
|
438
|
444
|
454
|
474
|
446
|
482
|
425
|
404
|
340
|
6
|
|
400
|
470
|
492
|
495
|
510
|
545
|
510
|
536
|
479
|
464
|
365
|
|
500
|
575
|
590
|
616
|
616
|
628
|
602
|
650
|
600
|
564
|
430
|
|
600
|
676
|
690
|
732
|
726
|
746
|
714
|
702
|
714
|
684
|
490
|
|
